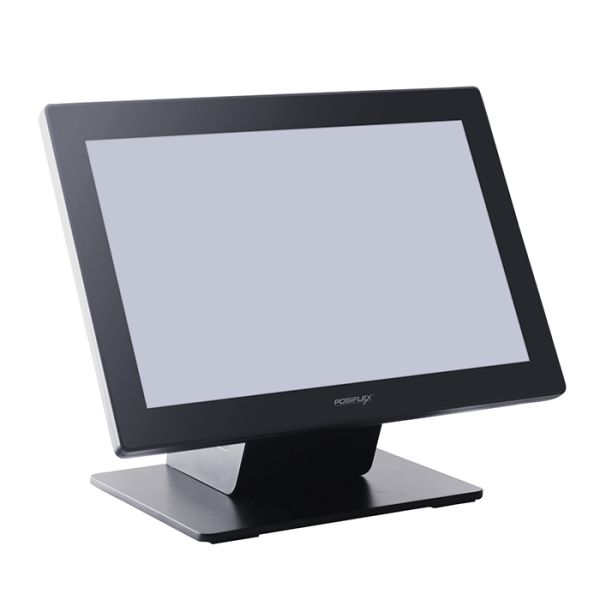

Posiflex RT-6015G2P POS All in one ขนาดหน้าจอ 15 นิ้ว ออกแบบบางเฉียบและเพรียวบางที่แสดงถึงความสง่างาม การจัดการสายเคเบิลที่ดีขึ้น และการบำรุงรักษาง่าย มีประสิทธิภาพสูง ยกระดับการออกแบบเครื่อง POS ขึ้นไปอีกระดับ เพื่อตอบสนองความต้องการของการใช้งานประจำวันในรูปแบบ Point of Sale โดยสร้างภาพลักษณ์ของแบรนด์ของคุณให้ดูดียี่งขึ้น
รูปลักษณ์เพรียวบางและมีสไตล์
ด้วยรูปทรงเพรียวบาง ตัวเครื่องเพรียวบางเป็นพิเศษ และพื้นผิวฝาครอบด้านหลังแบบเชิงเส้น RT-6015 มีหน้าจอสัมผัส PCAP ขนาด 15 นิ้ว และพอร์ตเต็มรูปแบบที่ซ่อนอยู่ในฝาครอบด้านหลังที่สะอาดไม่มีสกรูที่สามารถพบได้บนพื้นผิว ดูเรียบร้อยและเงางาม ง่ายต่อการดูแลรักษาความสะอาด
เทคโนโลยีไร้พัดลม
เทคโนโลยีไร้พัดลมช่วยให้เทอร์มินัลทำงานอย่างเงียบ ๆ ในสภาวะที่ไม่เอื้ออำนวยและในขณะเดียวกันก็มีอายุการใช้งานที่ยาวนาน
จัดการสายเคเบิลที่เป็นระเบียบ
การออกแบบการจัดการสายเคเบิลที่เป็นระเบียน ไม่มีความยุ่งเหยิงทำให้ใช้งานสะดวก ไม่เกะกะ ประหยัดพื้นที่ ทำให้ดูสะอาดตา หรูหร่า สามารถใช้กับอุปกรณ์เสริม USB หรือ รองรับการเชื่อมต่อกับเครื่องสำรองไฟ กรณีป้องกันเหตุการณ์ที่ไฟฟ้าขัดข้อง
การติดตั้งและการบริการที่รวดเร็วขึ้น
สามารถถอดฝาครอบด้านหลังออกได้ง่ายโดยไม่ต้องใช้เครื่องมือ จึงช่วยให้สามารถติดตั้งและบำรุงรักษาได้เร็วขึ้น
รุ่นนี้มาพร้อม Windows 10 Pro OEM
Technical information
System Configuration Posiflex RT-6015
- Processor Intel Tiger Lake Core i3-1115G4E;
- Intel Tiger Lake Core i5-1145G7E;
- Intel Tiger Lake Core i7-1185G7E
- System Memory DDR4 SO-DIMM x 2, max. 64 GB
- Storage Device 2 x M.2 2280 ( support both SATA III signal and PCIe signal)
- RAID Function Yes
- Intel vPro Support Yes, with Core i5 & i7
- TPM Support Yes, TPM 2.0
- Power Supply 12V/60W
- 12/150W with optional PoweredUSB module
- OS Support Windows 10 IoT 64 bits
- Display & Touch
- LCD 15” TFT LCD
- Resolution 1024 x 768
- Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
- I/O Expansion
- Serial Port 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
- Parallel Port N/A
- Standard USB Port 5, USB 3.0 x 2 + USB 2.0 x 3
- PoweredUSB Port Optional Powered USB module with 24V + 12V (USB 2.0 x 1 will no longer be available with the Powered USB module)
- OTG USB N/A
- LAN Port 10/100/1000 Mb x 1
- Display Port 1 x VGA (proprietary connector) + 1 x mini-DP
- CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
- PS/2 Port N/A
- UPS Port N/A
- Audio Internal 2W speaker x 1
- Expansion Slot M.2 2230 x 1 for Wi-Fi/BT
- Physical Dimension
- Dimension (W x D x H in mm) 368 x 207 x 325
- Weight (N. W. in kg) 5.4
- Environmental
- Operating Condition 0°C - 40°C, 20%RH - 90%RH
- Storage Condition -20°C - 70°C, 10%RH - 90%RH
- Built-in Options
- WiFi M.2 WiFi/BT module
- Camera 1MP wide angle camera
- MSR N/A
- AG Glass Cannot coexist with built-in camera
- Attachment Options
- POS Monitor Non-touch TFT LCD: 9.7"/10.1"/15";
- PCAP touch TFT LCD: 9.7"/10.1"
- Line Display 2 x 20 rear-mount VFD customer line display
- External UPS Pack For RT Series UPS battery module (12V/2300mAh)
- Attachment
- MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor
